• 4 Alarm Inputs, Dry Contact or Temperature
  (-20^oF to 150^oF)
• Built-in AC Power failure sensing
• Built-in high sound level detection
• 4 Dial-Out Phone Numbers, up to 32 digits each
• Intelligently dials out to numeric beepers or pagers
• 24 Hour Battery Backup (with user-installed batteries)
• Battery Condition Monitor
• Click here to buy now...free shipping!

• 8 Alarm Inputs, Dry Contact or Temperature
  (-20^oF to 150^oF)
• Built-in AC Power failure sensing
• Built-in high sound level detection
• 8 Dial-Out Phone Numbers, up to 32 digits each
• Intelligently dials out to numeric beepers or pagers
• 24 Hour Battery Backup (with user-installed batteries)
• Battery Condition Monitor
• Click here to buy now...free shipping!

• 4 Dry Contact Inputs
• Built-in AC Power failure sensing
• Built-in temperature monitoring
  (-20^oF to 150^oF)
• Built-in high sound level detection
• 1 Digital Output
• 4 Dial-Out Phone Numbers, up to 32 digits each
• Intelligently dials out to numeric beepers or pagers
• 22 Hour Rechargeable Battery Backup with built-in charger
• Standard NEMA-1 Steel Enclosure (NEMA-4 optional)
• Click here to buy now...free shipping!

• 4 Dry Contact Inputs
• Built-in AC Power failure sensing
• Built-in temperature monitoring
  (-60^oF to 175^oF)
• Built-in high sound level detection
• 1 Relay Output for manual or automatic switching
• 8 Dial-Out Phone Numbers, up to 32 digits each
• Intelligently dials out to numeric beepers or pagers
• Programmable real-voice customized alarm messages
• 12 Hour Rechargeable Battery Backup with built-in charger
• Standard NEMA-4X Fiberglass Enclosure
• Click here to buy now...free shipping!

If you are considering the use of the Express or 4100 dialers, be sure to also check out the new Sensaphone 1400! The 1400 is a feature-rich dialer at an economical price. Click on "Sensaphone 1400" at the top of this page for more info.

The Sensaphone Express monitors temperature and AC power and includes 4 dry contact inputs for sensors. The Express comes standard in a NEMA-4X fiberglass enclosure. The Express calls you at up to eight locations with your own voice-recorded alarm messages if there's a problem. When an alarm occurs, the Express cuts off all current calls and seizes the telephone line for immediate use. You may call in to the unit at any time for a status report. The Express has an integrated keypad and a built-in microphone for sound monitoring. All Sensaphone dialers have non-volatile memory which protects the system memory even during loss of both AC power and battery.

• 8 Standard Universally Configurable Inputs
• Optional input cards can add up to 32 additional input channels
• Built-in AC Power failure sensing
• Built-in high sound level detection
• 1 Relay Output for manual or automatic switching
• Optional output cards can add up to 32 additional output channels
• 48 Dial-Out Phone Numbers, up to 40 digits each
• Allows alarm-specific dialing
• Multiple phone lists for day/night/weekend
• Intelligently dials out to numeric beepers or pagers
• LCD display shows alarm status and phone activity
• Programmable real-voice customized alarm messages
• Fully programmable by touch-tone phone
• Serial port for printing alarm activity on a local printer
• 6-12 Hour Rechargeable Battery Backup with built-in charger
• Standard NEMA-4X Fiberglass Enclosure
• Click here to buy now...free shipping!

• 8 Standard Universally Configurable Inputs
• Built-in AC Power failure sensing
• 32 Dial-Out Phone Numbers, up to 36 digits each
• Allows alarm-specific dialing
• Multiple phone lists for day/night/weekend
• Line Seizure Feature
• Programmable real-voice customized alarm messages
• Free Microsoft Windows compatible programming software
• Built-in data logger
• Built-in modem for remote data communication and programming via computer
• RS232 Serial port for local programming and communication
• 10-15 Rechargeable Ni-Cad Battery Backup (Batteries sold separately)
• Durable Aluminum Enclosure
• Click here to buy now...free shipping!

• Can also report alarms/data to:
  • Fax
  • PC
  • Numeric Pager
  • Alphanumeric Pager
  • E-mail
  • Web Pages (automatically
    creates and uploads
    a web page containing
    polled data)

• 16 Standard Universally Configurable Inputs
• 8 Relay Output Channels
• Additional inputs and/or outputs can be added up to a total of 144 I/O points
• Built-in AC Power failure sensing
• Ladder Programming, C Programming and PID Control
• Fully programmable from a remote location
• Scrolling LCD Display
• 64 Dial-Out Phone Numbers
• Allows alarm-specific dialing
• Line-seizing telephone extension jack
• Built-in data logger and event logger
• Free Microsoft Windows compatible programming software
• Optional Built-in modem for remote data communication and programming via computer
• Optional Programmable real-voice customized alarm messages
• 2 RS232 Serial ports for local programming and communication
• Two battery back up options, 5AH or 18 AH sealed lead-acid gel cell rechargeable batteries
• Durable Aluminum Enclosure
• Click here to buy now...free shipping!

• With optional phone modem, unit can report alarms/data to:
  • Fax
  • PC
  • Numeric Pager
  • Alphanumeric Pager
  • E-mail
  • Web Pages (automatically
    creates and uploads
    a web page containing
    polled data)

• 8 Environmental Inputs with red and green indicator lights for each
• Ability to monitor 64 IP addresses
• AC Power monitoring with LED indicator
• Expansion nodes can be added up to a total of 256 inputs; 2,048 IP addresses, 32 power locations.
• PowerGate can be added to monitor 8 more remote power locations
• Built-in phone modem

• Programmable real-voice customized alarm messages
• Built-in Ethernet port
• Built-in Web Server
• Internal UPS battery backup with LED battery alarm indicator
• Built-in microphone and external microphone jack
• Supports Axis 2100 Network Cameras for visual monitoring (one camera per host/node-up to a total of 32 locations)
• Durable Aluminum Enclosure
• Click here to buy now...free shipping!

Skymetry Features:

• 8 Dry Contact Inputs: NO, NC, Pulse Count, Equipment Run-Time
• 6 Analog Inputs: 10K Thermistor (temperature), or 4-20mA
• 2 Relay Outputs: 20 different automatic and manual modes
• Duplex and Simplex Pump Control
• Wireless Alarm Message Delivery via Voice, Sky Tel Pager or E-mail
• Status & Programming via web page
• Peer-to-Peer Control among Skymetry units
• NEMA 4X enclosure and Battery Backup (optional)
• Low Power consumption-suitable for solar operation
• Solar Kit available (HPH-0060)
• Three year limited warranty
• Click here to buy now....free shipping!!!

It can monitor and control your environment and equipment using eight dry contact inputs, six analog inputs, built-in power failure detection, and two relay outputs.

It can perform simplex or duplex alternating pump control using a level transducer or float switches. The unit can also perform peer-to-peer control among multiple Skymetry devices.

Monthly service subscription ranges from $10 to $27 per month. Plan pricing and details can be viewed by clicking here.
(Prices subject to change)

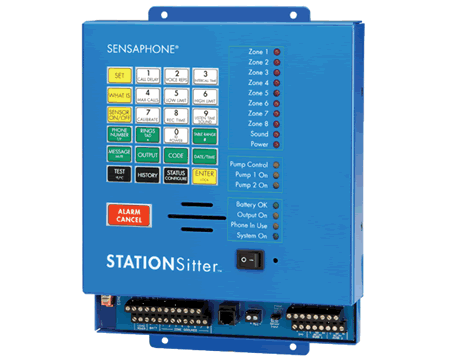

StationSitter Features:

INPUTS:

• 6 Analog Inputs: 10K Thermistor (temperature), or 4-20mA
• Eight universal inputs with 4-20mA support. All eight inputs can be configured as Normally Open, Normally Closed, Temperature, or 4-20mA.
• Easy-to-install with fully automatic input configuration. NO INPUT JUMPERS!
• Scaleable range on 4-20mA analog inputs.
• Programmable recognition time for all inputs.
• Internal sensor calibration for all inputs.
• Click here to buy now....free shipping!!!

OUTPUTS:

• One output channel for manual or automatic control from alarms.
• Two additional outputs for duplex pump control.

PUMP CONTROL:

• Built-in Pump Controller runs independently from alarm monitoring.
• Control logic for Fill or Drain applications.
• Pump control works with analog level sensor, or from float switches.

NOTIFICATION:

• Eight phone numbers for alarm notification.
• Custom voice messages for the ID and ALL monitored zones.
• Text based alarm messages to alphanumeric pagers, and cell phones.
• Dial out test function to simulate and verify alarm notification.
• Individual user acknowledgement codes for tracking alarm activity.

LOCAL ACCESS:

• Keypad and speaker for local programming.
• LED indicators for all inputs and outputs, plus Battery status, Power status, Phone status, and Pump Control Status.
• Password protected keypad to restrict local programming access.
• Detailed alarm history with optional hourly snapshot history of all zones.

REMOTE ACCESS:

• Automatic Web status option, free for first year.
• Detailed alarm history with optional hourly snapshot history of all zones.

OTHER:

• High sound alarm, plus remote listen in.
• Packaged in a panel mount enclosure with built-in mounting tabs.
• Optional Nema 4x enclosure.
• Superior lightning protection.
• Three year limited warranty.


Powerful Pump Control and Alarming Dialout combined in a single reliable control unit.

The StationSitter performs duplex pump control with either level transducers or float switches as well as providing monitoring and alarming of all equipment and environmental conditions within the facility.

Ideal applications include water towers, lift stations, pump rooms and refrigeration systems.

1400 and 1800 Features:

• Monitor up to 4 (1400) or 8 (1800) conditions,
  plus power failure and sound level
• Notify up to 8 people with CUSTOM VOICE phone calls
• Review alarm history and who acknowledged the alarm event
• Click here to buy now....free shipping!!!

Input Zones:

• Four (1400) or eight (1800) universal inputs that support Normally Open, Normally Closed, and 4-20 mA transducers, or temperature sensors
• Automatic input type configuration
• Scalable range for analog zones
• Programmable recognition times
• Internal calibration

Output Relays:

• One universal output relay. Manual or automatic alarm response switching

Remote Access:

• Call in with any Touch-Tone phone to check the status of all monitored conditions
• Make programming changes remotely from any Touch-Tone phone

Alarm Notification:

• Up to eight destinations can be contacted for alarms
• Makes voice phone calls with customized messages for easy identification
• Built-in alarm test function to simulate and test the notification process
• Individual user codes to track who responded to each alarm

The Sensaphone 1400 is a great replacement for a model 4100 or Express dialer.

The Sensaphone Models 1400 and 1800 are the perfect solution for your 4 or 8-channel remote monitoring needs. They combine all the feature of the popular Sensaphone 1100 desktop series, but add significant enhancements that expand your monitoring and notification capabilities. These include custom voice message programming, rechargeable battery backup, xtended battery backup, and extended temperature sensing. The 1400 and 1800 are packaged in a sealed, lockable NEMA-4X enclosure to withstand harsher environments.
